Product Range
|
|

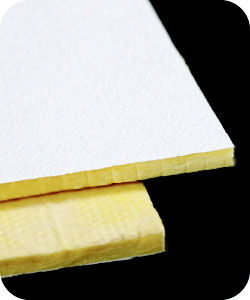

Thermaltone
 |
|
Thermaltone range of panels is available in square lay in panels and it is easily demountable. Lightweight acoustic panels are ideal for nearly any application, including offices, buildings, schools, churches, warehouses, conference rooms, entries and lobbies.
|
- PROPERTIES
- Faced ivory vinyl with micro perforation
- Enhance sound absorption with micro perforated surface while the embossed ivory vinyl offers a smooth, elegant surface finish
- The ceiling panels are both humidity and sag resistant, meaning that your panels will not buckle or warp
- Ivory vinyl surface of the panels makes it easy to be cleaned with a soft brush or vacuum
- THERMAL PERFORMANCE
Test according to ASTM C518 at 23°C and 20°C mean temperature. Thermal resistance of 0.68 m2K/W
- ACOUSTICAL PERFORMANCE
Type ‘E’ Mounting, tested in accordance with ASTM C 423 and ASTM E 795. Acoustic performance of NRC up to 0.80
- FIRE PROPERTIES
Tested in accordance and comply with (plain/unfaced):
- B.S. 476: Part 4 Non-combustibility test for materials
- B.S. 476: Part 6 Fire propagation
- B.S. 476: Part 7 Surface spread of flame
- ASTM E84
- Fire Hazard classification 25/50
- Bomba Class ‘O’
- AS 1530: Part 3-1982
- DIMENSION
Nominal Thickness - 20mm
Composite Thickness - 22.60mm
- AVAILABLE FORMS
Standard board size: 603mm x 1212mm and 603mm x 606mm
|
|
