Cineplextone
 |
|

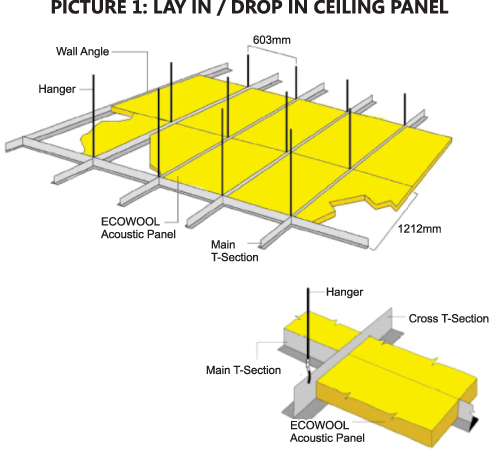

Cineplextone acoustic ceiling panels provide an attractive ‘drop-in’ system ideally suited to commercial 25mm T-section grid systems. Specifically developed to meet acoustical and aesthetic requirements for theatre applications. Recommended for ceiling applications within the theatre hall where the rich matte black color enhances theatre aesthetics.
|
- PROPERTIES
- Enhanced sound control to help improve privacy and comfort
- Sag-resistant acoustic panel designed to meet the need for a lightweight sag resistant ceiling panel

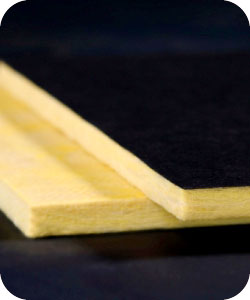

- Faced with rich matte black color acoustic material
- The panels feature extraordinary ease of maintenance, moisture-resistant and is cleanable, making them suitable for high-humidity areas
- THERMAL PERFORMANCE
Test according to ASTM C518 at 23°C and 20°C mean temperature. Thermal resistance of 0.65 m2K/W
- ACOUSTICAL PERFORMANCE
Type ‘E’ Mounting, tested in accordance with ASTM C 423 and ASTM E 795. Acoustic performance of NRC up to 0.85
- FIRE PROPERTIES
Tested in accordance and comply with (plain/unfaced):
- B.S. 476: Part 4 Non-combustibility test for materials
- B.S. 476: Part 6 Fire propagation
- B.S. 476: Part 7 Surface spread of flame
- ASTM E84
- Fire Hazard classification 25/50
- Bomba Class ‘O’
- AS 1530: Part 3-1982
- DIMENSION
Nominal Thickness - 20mm
Composite Thickness - 20.46mm
- AVAILABLE FORMS
Standard board size: 603mm x 1212mm and 603mm x 606mm
|
|
